Type 83.01 - Modular timer

  • Eight time scales from 0.05 s to 10 days
  • High input/output insulation

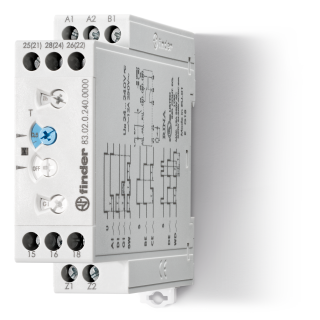

Type 83.02 - Modular timer 12A

  • Eight time scales from 0.05 s to 10 days
  • High input/output insulation

Type 83.11 - Modular timer 16A

  • 1 contact
  • Eight time scales from 0.05 s to 10 days

Type 83.21 - Modular timer 16A

  • 1 contact
  • Eight time scales from 0.05 s to 10 days

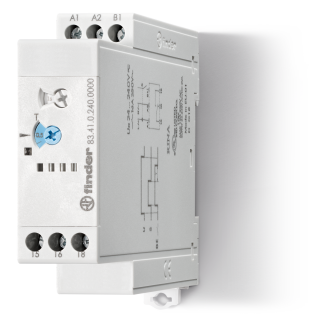

Type 83.41 - Modular timer 16A

  • 1 contact
  • Eight time scales from 0.05 s to 10 days

Type 83.52 - Modular timer 12A

  • Eight time scales from 0.05 s to 10 days
  • High input/output insulation

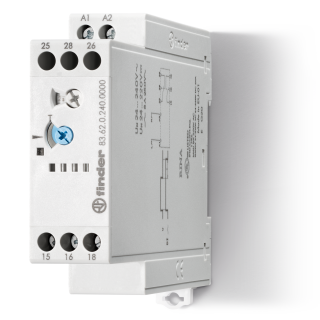

Type 83.62 - Modular timer 8A

  • 22.5 mm wide
  • Time scales: 0.05 s to 3 minutes

Type 83.82 - Modular timer 16A

  • 22.5 mm wide
  • Eight S-D time scales from 0.05 s to 10 days

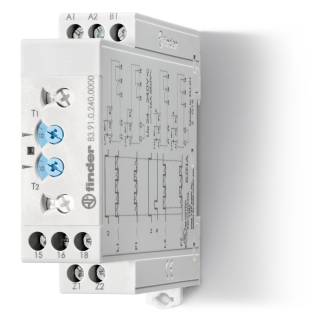

Type 83.91 - Modular timer 16A

  • 1 contact
  • Width 22.5 mm

ACCESSORIES

060.48

Sheet of marker tags

-For relays types 83.01/11/21/41/62/82
-Plastic
-48 tags
-6 x 12 mm

Potentiometer

-Usable as external potentiometer for type 83.02/52
-10 kΩ / 0.25 W linear
-IP 66
